詳細介紹
日本孔雀PEACOCK比測型千分表5Z/17B/47Z-XB
特點
目量0.01mm, 0.001mm, 0.005mmタイプの指針１回転未満ダイヤルゲージです。
指針の回転を１回転未満にして、読み間違いを防止しました。
比較測定専用ダイヤルとして豊富な器種より選択してください。
規(guī)格
| 型 號 | 目 量 | 測定范圍 | 目盛仕様 | 指示誤差 (μm) | 戻り誤差 | 繰返し | 測定力 | ||||
| 1/10回転 | 1/2回転 | 1回転 | 2回転 | 全測定 | |||||||
| 15Z | 0.001 | 0.16 (3.0) | 80 - 0 - 80 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.5 | 1.5 |

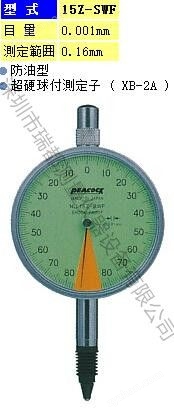

| 15Z-SWF | 0.001 | 0.16 (3.0) | 80 - 0 - 80 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.5 | 1.5 |
| 5Z | 0.001 | 0.14 (3.0) | 70 - 0 - 70 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.5 | 1.5 |

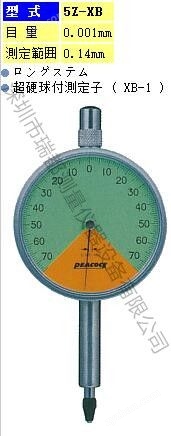

| 5Z-XB | 0.001 | 0.14 (3.0) | 70 - 0 - 70 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.5 | 1.5 |
| 15DZ | 0.001 | 0.16 (3.0) | 80 - 0 - 80 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.7 | 1.5 |
| 18 | 0.001 | 0.16 (3.0) | 80 - 0 - 80 | 2.5 | ±3 | ±4 | -- | -- | 3 | 0.5 | 1.5 |

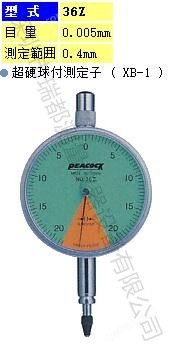

| 36Z | 0.005 | 0.4 (3.0) | 20 - 0 - 20 | -- | -- | ±10 | -- | -- | 5 | 5 | 1.4 |
| 117Z | 0.01 | 1.0 (7.0) | 50 - 0 - 50 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |

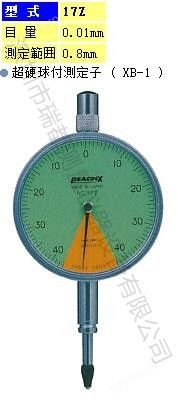

| 17Z | 0.01 | 0.8 (7.0) | 40 - 0 - 40 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |
| 17Z-SWA | 0.01 | 0.8 (7.0) | 40 - 0 - 40 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |
| 107Z | 0.01 | 0.8 (7.0) | 40 - 0 - 40 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |
| 107Z-XB | 0.01 | 0.8 (7.0) | 40 - 0 - 40 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |
| 17B | 0.01 | 0.8 (10) | 40 - 0 - 40 | 8 | ±9 | ±10 | -- | -- | 5 | 5 | 1.4 |
| 47SZ | 0.01 | 0.8 (4.0) | 40 - 0 - 40 | 9 | -- | ±13 | -- | -- | 6 | 5 | 1.4 |
| 196Z | 0.01 | 0.8 (4.0) | 40 - 0 - 40 | 10 | ±12 | ±15 | -- | -- | 6 | 5 | 1.4 |
| 147Z | 0.01 | 1.0 (4.0) | 50 - 0 - 50 | 9 | -- | ±13 | -- | -- | 6 | 5 | 1.4 |
| 47Z | 0.01 | 0.8 (4.0) | 40 - 0 - 40 | 9 | -- | ±13 | -- | -- | 6 | 5 | 1.4 |

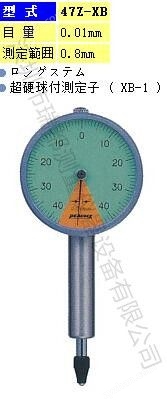

| 47Z-XB | 0.01 | 0.8 (4.0) | 40 - 0 - 40 | 9 | -- | ±13 | -- | -- | 6 | 5 | 1.4 |
外觀尺寸
| 型 式 | A | B | C | D | E | F | G | H | I | K | ||
| 15Z (15ZL) | 60 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 33.5 | ||
| 15Z-SWF (15Z-SWFL) | 62.5 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 36 | ||
| 5Z (5ZL) | 66.4 | 41.5 | 30 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 39.9 | ||
| 5Z-XB (5Z-XBL) | 69.4 | 41.5 | 30 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 42.9 | ||
| 15DZ (15DZL) | 69.4 | 41.5 | 23.7 | 66.5 | 15.5 | (20) | 4 | 7.6 | 49 | 36 | ||
| 18 (18L) | 69.4 | 41.5 | 29 | 55 | 16.8 | (20) | 4 | 6.5 | 49 | 41.9 | ||
| 36Z (36ZL) | 60 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 33.5 | ||
| 117Z (117ZL) | 65 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 38.5 | ||
| 17Z (17ZL) | 65 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 38.5 | ||
| 17Z-SWA (17Z-SWAL) | 65 | 41.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 38.5 | ||
| 107Z (107ZL) | 66.4 | 41.5 | 30 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 39.9 | ||
| 107Z-XB (107Z-XBL) | 69.4 | 41.5 | 30 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 42.9 | ||
| 17B (17BF) | 65 | 40.5 | 18.5 | 53 | 14.5 | (20) | 4 | 6.5 | 49 | 38.5 | ||
| 47SZ (47SZL) | 41.1 | 20 | 9.7 | 36 | 13 | (15) | 3.5 | 6.5 | 32 | 23.1 | ||
| 147Z (147ZL) | 41.1 | 20 | 9.7 | 36 | 13 | (15) | 3.5 | 6.5 | 32 | 23.1 | ||
| 47Z (47ZL) | 58.9 | 20 | 30 | 36 | 13 | (15) | 4 | 5.8 | 32 | 40.9 | ||
| 47Z-XB (47Z-XBL) | 61.9 | 20 | 30 | 36 | 13 | (15) | 4 | 5.8 | 32 | 43.9 | ||
| ||||||||||||
